Tube Laser Product Lines
Entry-Level Tube Cutting
5-Axis Bevel Solutions
Choose the Q Series when your priority is easy operation, no-drawing tube cutting and high value. Choose the P Series when your jobs require bevel cutting, thick tubes and one-step forming before welding.
Q Series | Entry-Level Tube Laser Cutter
High-value tube laser cutting for daily production
The Q Series is built for factories upgrading from punching, sawing and manual drilling. It combines no-drawing operation, short-tail processing and stable cutting performance for common tube products.
- Easy operation: Operators can learn the workflow quickly without deep CAD experience.
- No-drawing software: Common tube and hole patterns are produced through parameter input.
- High value: Suitable for railings, shelves, handrails, furniture, sanitary ware and similar tube products.
- Fast startup: Front feeding and short-tail processing reduce waiting time and material waste.
| Model | Q12 | Q12Y | Q16 | Q16Y |
|---|---|---|---|---|
| Laser power | 1500-6000W | 1500-6000W | 1500-6000W | 1500-6000W |
| Processing range | Round tube φ12-φ120; square tube 120×120; I-beam/channel steel ≤8#; angle steel ≤75mm; circumscribed circle ＜φ120×120 | Round tube φ12-φ120; square tube 120×120; I-beam/channel steel ≤8#; angle steel ≤75mm; circumscribed circle ＜φ120×120 | Round tube φ8-φ165; square tube 165×165; I-beam/channel/angle steel ≤10#; circumscribed circle ＜φ165×165 | Round tube φ8-φ165; square tube 165×165; I-beam/channel/angle steel ≤10#; circumscribed circle ＜φ165×165 |
| Repeat positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Standard chuck load | 100KG | 100KG | 200KG | 200KG |
| Precision chuck load | 80KG | 80KG | 180KG | 180KG |
| Tail length: rear chuck single clamp | ≥80mm | ≥45mm | ≥80mm | ≥45mm |
| Tail length: dual chuck dual clamp | ≥200mm | ≥45mm | ≥220mm | ≥45mm |
| Size L×W×H | ≈8.1×1.1×1.8M | ≈8.5×1.1×1.8M | ≈8.1×1.1×1.8M | ≈8.5×1.1×1.8M |
P Series | 5-Axis Bevel Laser Tube Cutting Machine
Bevel cutting and one-step forming for thick tubes
The P Series is designed for thick tubes, welded structures and complex joints. It completes cutting and bevel forming in one process to reduce secondary grinding and workpiece handling.
- 5-axis bevel cutting: Adjustable 0-60° bevel angle with angle error ≤±0.1°.
- Thick tube processing: Suitable for carbon steel, stainless steel and aluminum alloy tubes.
- One-step forming: Cutting and bevel forming are completed together for better welding preparation.
| Control system | High-precision 5-axis linkage control system |
|---|---|
| Bevel angle | 0-60° adjustable |
| Bevel angle error | ≤±0.1° |
| Cutting range | Φ12-Φ300mm |
| Wall thickness range | 1-20mm |
| Applicable materials | Carbon steel, stainless steel, aluminum alloy, etc. |
Compact Upgrade
Compact tube cutting for on-site and space-limited workshops
For customers who need mobility, short machine length or shop-floor flexibility, compact options extend the Q Series concept into tighter production spaces.
- Short machine body: Overall length reduced to around 3.1 meters.
- Long material capability: Designed to break the limits of traditional 6-meter processing.
- On-site production: Useful for job sites, storefront workshops and compact factories.
| Machine | X12Y-1 dual front chuck tube laser cutting machine |
|---|---|
| Laser power | 1500-3000W |
| Processing range | 10-100 |
| Single tube weight | ≤70KG |
| Tail length | ≈100MM |
| Overall dimensions L×W×H | 3.1×1.48×1.4M |

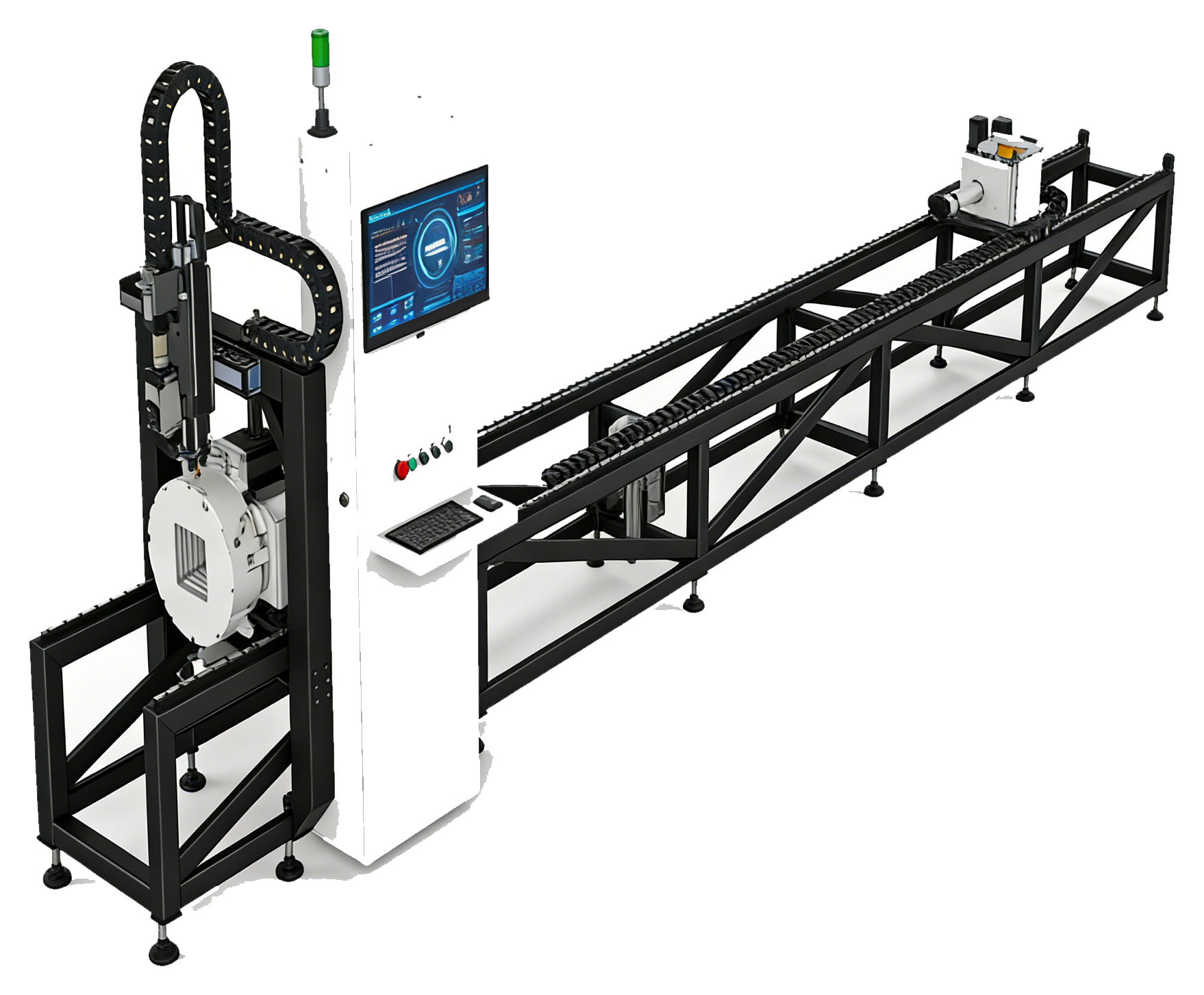

Value Machine
Lightweight value tube cutting option
A stable and easy-to-move machine option for railings, shelves, handrails, sanitary ware and building material processing.
- Upgraded front chuck: Full-stroke pneumatic automatic chuck reduces manual adjustment.
- Software upgrade: Standard computer-based no-drawing system for easier operation.
- Multi-material capability: Cuts stainless steel, iron tube and aluminum tube.
| M12 tube diameter range | Φ8-φ85 |
|---|---|
| M12 workpiece length range | 1mm-6000mm |
| M12 material thickness | 0.2-3mm |
| M12 maximum cutting line speed | ≤25m/min, depending on material thickness and tube diameter |
| M12 cutting accuracy | Finished length ≤500mm: ≤±0.1mm; 500mm≤ finished length ≤1200mm: ≤±0.2mm |
| M12Y laser power | 1500-3000W |
| M12Y processing range | 8-120 |
| M12Y tail length | ＜85MM |
| M12Y dimensions L×W×H | 6.98×1.3×2M |

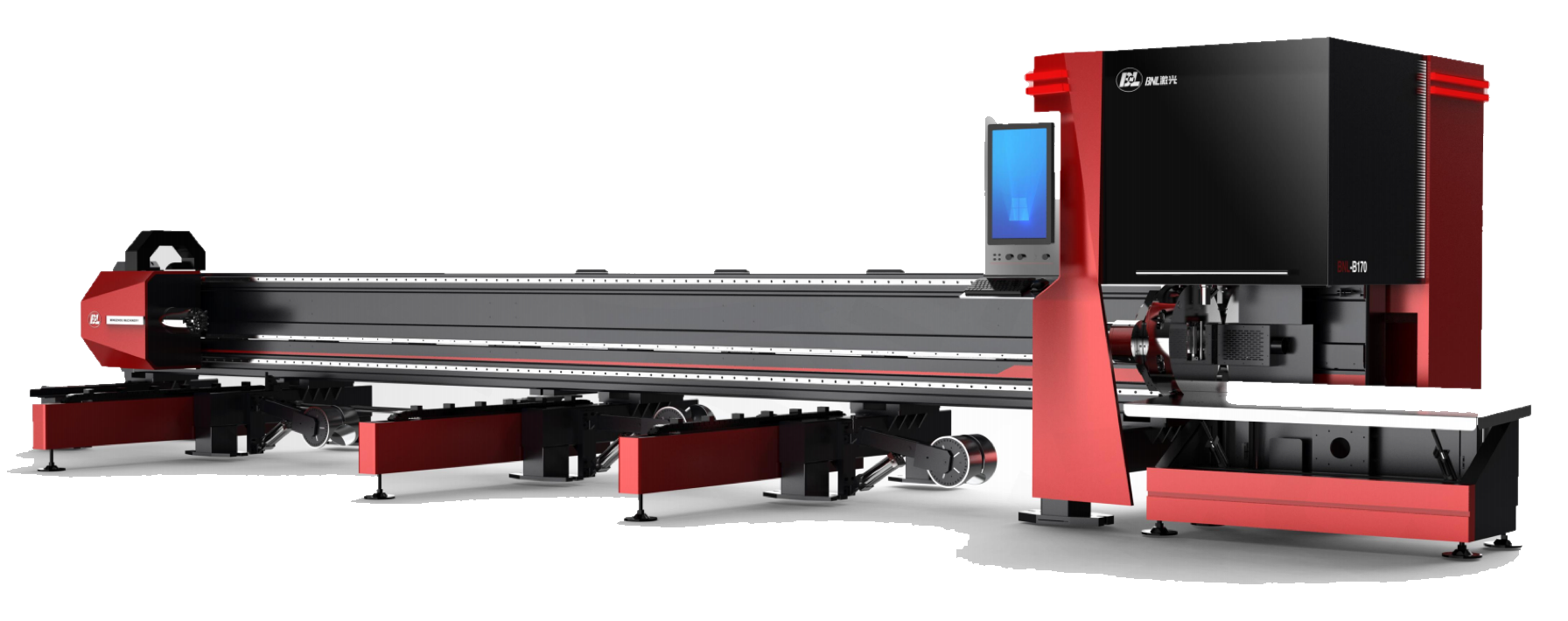

High-Power Extension
Side-mounted tube laser cutting for larger production needs
For multi-profile, higher-power and stable batch production requirements, side-mounted machines expand capacity beyond entry-level daily cutting.
- Short-tail cutting: Front chuck moving structure with intelligent cutting head avoidance.
- Semi-automatic loading: Reduces labor intensity and improves continuous processing stability.
- Compact side-mounted frame: Balances production capacity with workshop space.
| Product name | B-NexBeam side-mounted tube laser cutting machine |
|---|---|
| Model range | B90-B350 |
| Laser power | 1500-12000W |
| Applicable profiles | Square tube, round tube, rectangular tube, oval tube, I-beam, channel steel, angle steel |

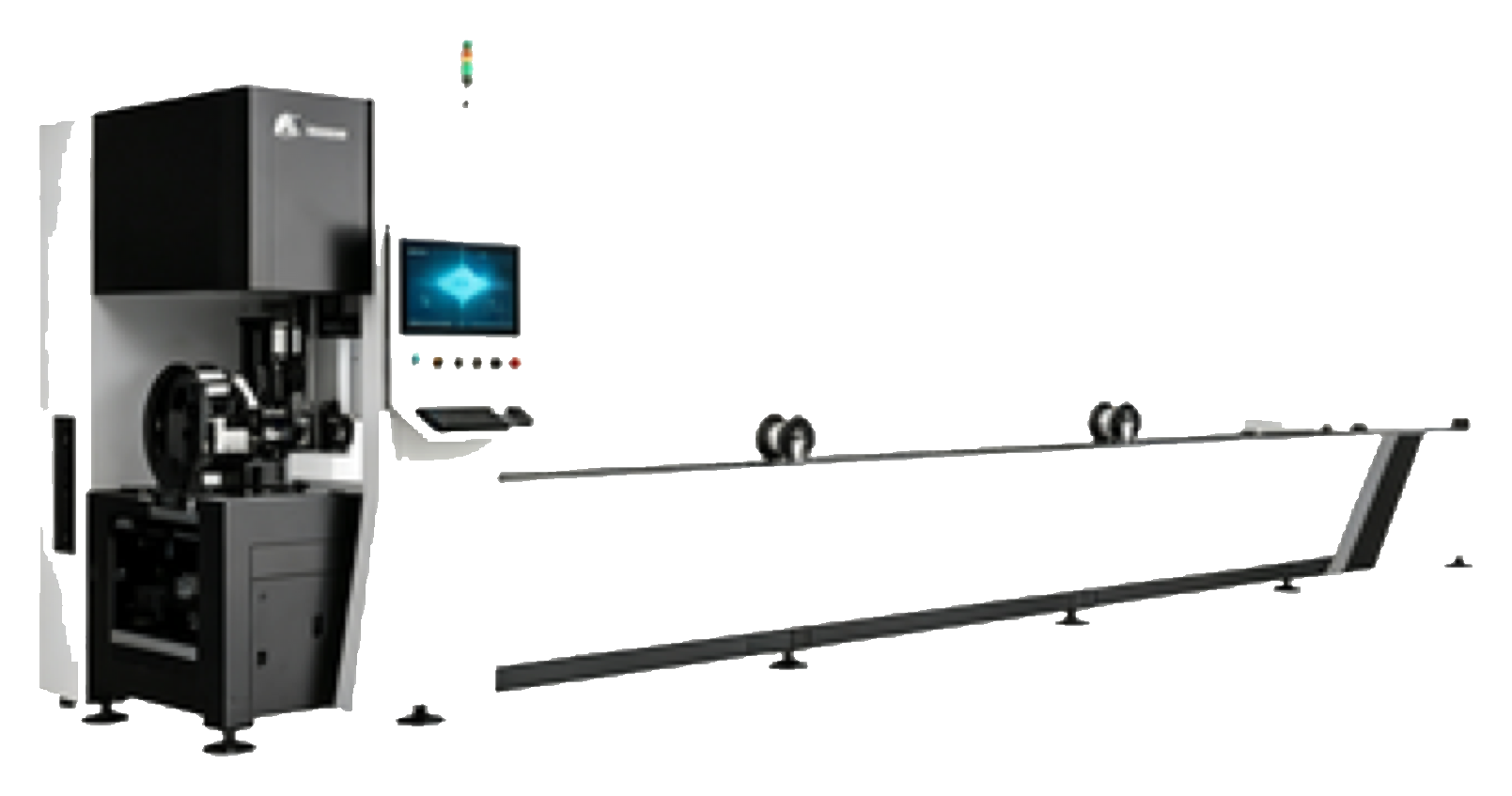

Special Application
Tube laser cutting for liquid-cooling pipe applications
A dedicated solution for liquid-cooling pipe processing, configured with automatic loading and unloading for specialized production lines.
- Liquid-cooling focus: Designed for demanding data center and AI computing cooling applications.
- Clean inner-wall cutting: Helps reduce dross, burrs and secondary cleaning.
- Automatic loading and unloading: Reduces manual handling and improves production continuity.
| Product name | L-PurePro liquid-cooling pipe tube laser cutting machine |
|---|---|
| Model range | L90-L350 |
| Laser power | 1500-12000W |
| Configuration | Automatic loading and unloading system |
| Application | Liquid-cooling pipe processing |
